📘 Machine Learning Workflow & Lifecycle Illustrated

🧭 Machine Learning Workflow & Lifecycle Illustrated

— Comprehensive Notes: Phases, Jargon, and Best Practices

A structured, novice-friendly guide to understanding the entire Machine Learning Lifecycle — from problem definition to monitoring and governance.

---

🎯 Overview

The Machine Learning (ML) lifecycle is a structured, iterative process that defines how ML projects move from concept → deployment → continuous improvement.

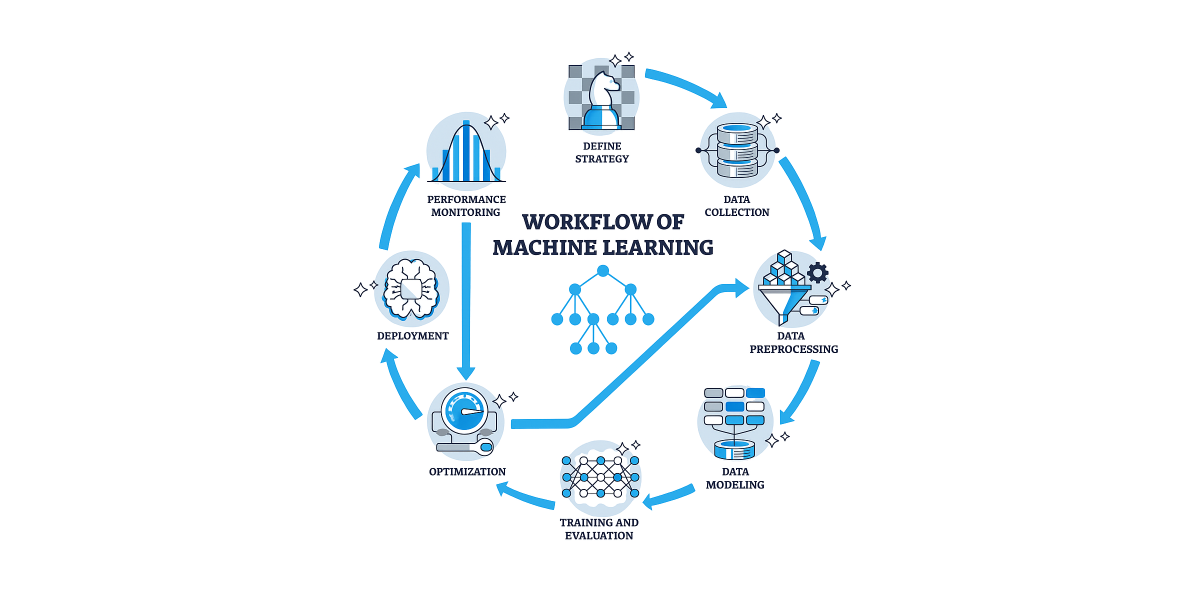

Machine Learning Lifecycle Illustrated

🧭 Workflow of Machine Learning

A visually guided overview of the Machine Learning Lifecycle, showing each stage in a cyclical, iterative process from strategy to deployment and monitoring.

The ML lifecycle is not linear — it’s a continuous feedback loop where monitoring insights drive retraining and improvement. It ensures reproducibility, reliability, and business value — uniting Data Science, Engineering, and Operations (MLOps).

🧩 Stages in the ML Workflow

Stage	Description
Define Strategy	Establish problem scope, objectives, and metrics.
Data Collection	Gather relevant, representative, and reliable data.
Data Preprocessing	Clean, transform, and prepare data for modeling.
Data Modeling	Select algorithms and structure data relationships.
Training & Evaluation	Train models, assess performance using metrics.
Optimization	Tune hyperparameters and improve generalization.
Deployment	Push trained models into production environments.
Performance Monitoring	Continuously track model health and drift.

• Use MLOps pipelines for automation of retraining and deployment.
• Implement data versioning and experiment tracking for reproducibility.
• Include monitoring tools (EvidentlyAI, WhyLabs, Prometheus) for drift detection.

---

🧩 Canonical Lifecycle Phases

#	Phase	Objective	Key Outputs
1️⃣	Problem Definition	Define business problem, goals, and metrics.	Success KPIs, scope, and plan.
2️⃣	Data Collection & Understanding	Gather, label, and validate datasets.	Data sources, quality report.
3️⃣	Data Preparation & EDA	Clean, transform, and explore data.	Cleaned data, insights, baselines.
4️⃣	Feature Engineering & Selection	Create and select meaningful features.	Feature store, importance report.
5️⃣	Model Development / Experimentation	Build, train, and optimize models.	Model artifacts, logs, metrics.
6️⃣	Evaluation & Validation	Assess models on performance and fairness.	Validation report, model card.
7️⃣	Deployment / Productionization	Deploy model into live environment.	APIs, pipelines, documentation.
8️⃣	Monitoring & Maintenance	Detect drift, retrain, ensure governance.	Monitoring dashboards, alerts.

🧠 Lifecycle = Iterative Feedback Loop
Each stage informs and improves the next — fostering a continuous learning system.

---

🔤 Jargon Mapping Table

💬 Common Jargon / Term	🎯 Equivalent Lifecycle Phase	🧩 Meaning
Business Understanding	Problem Definition	Clarifying objectives and success criteria
Data Ingestion / ETL	Data Collection & Prep	Importing and transforming data
Data Wrangling / Cleaning	Data Preparation	Handling missing values, duplicates
Feature Engineering	Feature Stage	Creating model-ready variables
Experimentation	Model Development	Training multiple models with tracking
Model Selection	Evaluation & Validation	Choosing best model & metrics
Serving / Inference	Deployment	Making predictions available
Drift Detection	Monitoring	Identifying data/model changes
MLOps	Governance & Ops	Managing ML reliably in production
Model Registry	Deployment Ops	Versioned model artifact management

⚙️ Different organizations may use varied terminology — but the underlying workflow remains the same.

---

🧱 Hierarchical Differentiation Table

🔝 Level	🧩 Sub-Phases	🎯 Primary Outputs
Design / Strategy	Problem Definition, Goal Alignment	Project charter, success metrics
Data Layer	Data Collection, Validation, EDA	Clean dataset, metadata
Feature Layer	Feature Engineering, Selection	Feature store, versioned logic
Model Layer	Model Training, Experimentation	Model artifacts, experiment logs
Evaluation Layer	Validation, Robustness, Fairness	Model card, validation report
Production Layer	Deployment, Scaling, CI/CD	APIs, pipelines, registry
Operations Layer	Monitoring, Drift, Retraining	Dashboards, alerts, audit logs

🧩 These hierarchical layers represent increasing maturity and automation.

---

🧮 Phase-by-Phase Cheat Sheet

1️⃣ Problem Definition

• Align stakeholders and success metrics (business ↔ ML).
• Define hypothesis, constraints, and ethical guidelines.
• 🧾 Deliverables: KPIs, roadmap, data access plan.

2️⃣ Data Collection & Understanding

• Collect, label, and validate datasets.
• Assess data coverage, bias, and quality.
• 🧾 Deliverables: Raw data + quality report.

3️⃣ Data Preparation & EDA

• Handle missing values, outliers, normalization.
• Perform exploratory analysis and visualization.
• 🧾 Deliverables: Clean dataset + EDA summary.

4️⃣ Feature Engineering

• Encode categorical variables.
• Create domain-specific features.
• Apply feature selection techniques.
• 🧾 Deliverables: Feature table, correlation matrix.

5️⃣ Model Development / Training

• Train candidate models.
• Apply hyperparameter tuning and experiment tracking.
• 🧾 Deliverables: Trained model artifacts, logs.

6️⃣ Evaluation & Validation

• Evaluate using metrics (F1, ROC-AUC, RMSE, etc.).
• Conduct error and bias analysis.
• 🧾 Deliverables: Model report, reproducible evaluation.

7️⃣ Deployment / Productionization

• Containerize model (Docker, K8s).
• Automate pipelines (CI/CD).
• 🧾 Deliverables: API endpoint, registry entry.

8️⃣ Monitoring & Governance

• Track drift, latency, fairness, uptime.
• Automate retraining.
• 🧾 Deliverables: Monitoring dashboard, audit trail.

---

🚀 Typical Tools & Components

🧰 Function	⚙️ Tools / Platforms
Data Ingestion	Apache Airflow, Kafka, dbt
Feature Store	Feast, Tecton
Experiment Tracking	MLflow, Weights & Biases, Comet, Neptune.ai
Deployment	Docker, Kubernetes, Vertex AI, Sagemaker, BentoML
Monitoring	EvidentlyAI, Prometheus, Grafana, WhyLabs
CI/CD	GitHub Actions, Jenkins, ArgoCD, Kubeflow Pipelines

---

⚠️ Common Pitfalls & Fixes

❌ Pitfall	✅ Solution
Starting without clear metrics	Define measurable success criteria first
Data leakage between train/test	Separate sets, temporal split
Ignoring model monitoring	Add drift detection, live metrics
Untracked experiments	Use MLflow or Comet for traceability
Neglecting fairness	Add bias checks & model cards

---

🧩 Example (Conceptual)

# Define pipeline steps (conceptual)
def ml_pipeline():
    data = collect_data()
    clean = prepare_data(data)
    features = engineer_features(clean)
    model = train_model(features)
    validate(model)
    deploy(model)
    monitor(model)

🧠 Every ML pipeline is cyclical: models evolve as data and context change.

---

📜 Lifecycle in One Line

Plan → Data → Prepare → Feature → Model → Evaluate → Deploy → Monitor → Repeat

---

🪶 References (Trusted & Validated)

1. GeeksforGeeks — Machine Learning Lifecycle
2. DataCamp — The Machine Learning Lifecycle Explained
3. Deepchecks — Understanding the Machine Learning Life Cycle
4. TutorialsPoint — Machine Learning Life Cycle
5. Analytics Vidhya — Machine Learning Life Cycle Explained
6. Comet ML — ML Lifecycle Platform Guide
7. Neptune.ai — The Life Cycle of a Machine Learning Project

---

🏁 Final Thoughts

🧭 The Machine Learning Lifecycle is the bridge between experimentation and production. It ensures that ML solutions are reliable, explainable, and maintainable — enabling sustainable Data Science success.

---
